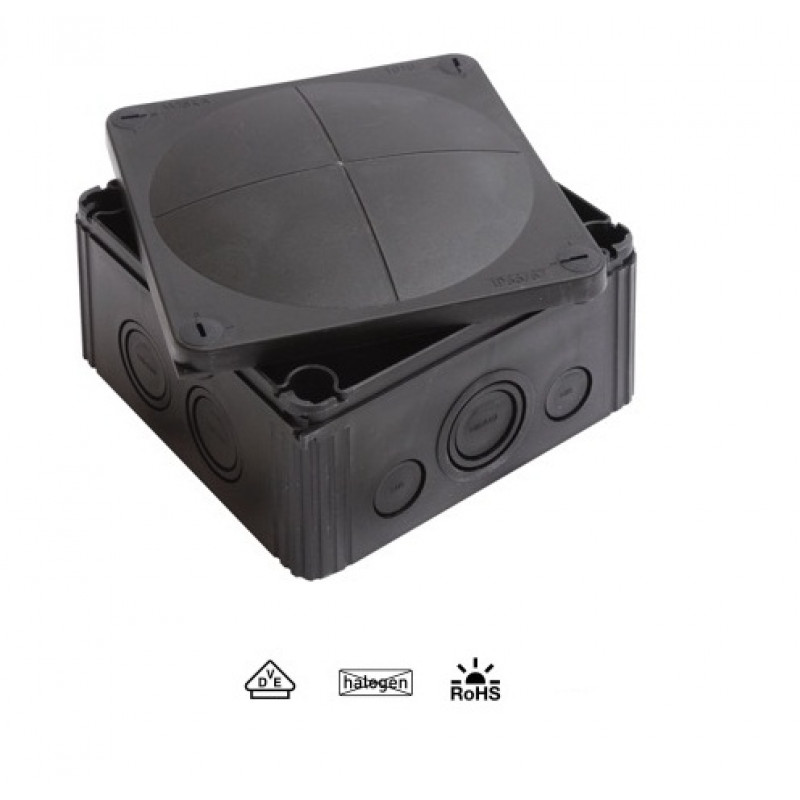

62214, Black COMBI 1010 (Empty) IP67 Junction Box (140x140x82mm)

62214, Black COMBI 1010 (Empty) IP67 Junction Box (140x140x82mm)

  • Brand:Wiska
  • Product Code:62214
  • Availability:Please Call or Email Us to Check Availability

Please contact sales on 01628 669124 or email sales@hunters-wholesalers.co.uk for a quote on this product


62214, Black COMBI 1010 (Empty) IP67 Junction Box (140x140x82mm)

The COMBI series by WISKA offers outstanding properties and a comprehensive range of accessories for the widest range of applications. COMBI junction boxes are used in commercial, industrial and domestic applications, such as railway, shipping and offshore industries.

Features:

Material Polypropylene
Material sealing gasket TPE
Temp. range min -30 °C
Temp. range max 100 °C
Temperatures during install. -5 °C - 60 °C
Protection class IP66/67
Glow wire test 750 °C
Voltage 690 V
Terminals/poles 10 mm²
Fixing 4 internal openings
Ø cable diameter min 6 mm
Ø cable diameter max 21 mm
External dimensions LxWxH 140 x 140 x 82mm
Using for cable gland Using for cable gland
Product Color RAL 7035
WISKA-Order no. 10060702
Type COMBI 1010/empty
Packing unit 2
ETIM-Classification EC002600
Remarks:

IP66: using the QUIXX self sealing membrane screw
IP67: using the knockout entry together with
ESKV cable gland
Mounting: 4 internal openings outside of the sealing area
Equipment: 10 knockouts side 5x M25/M32; 2x M20; 3x M20/M32
4 knockouts in the bottom 2x M25/M32; 2x M20/M25
4 captive cover screws
including QUIXX EMS self-sealing membrane screw 2x M25; 1x M32

For more details, please find the attached datasheet.
