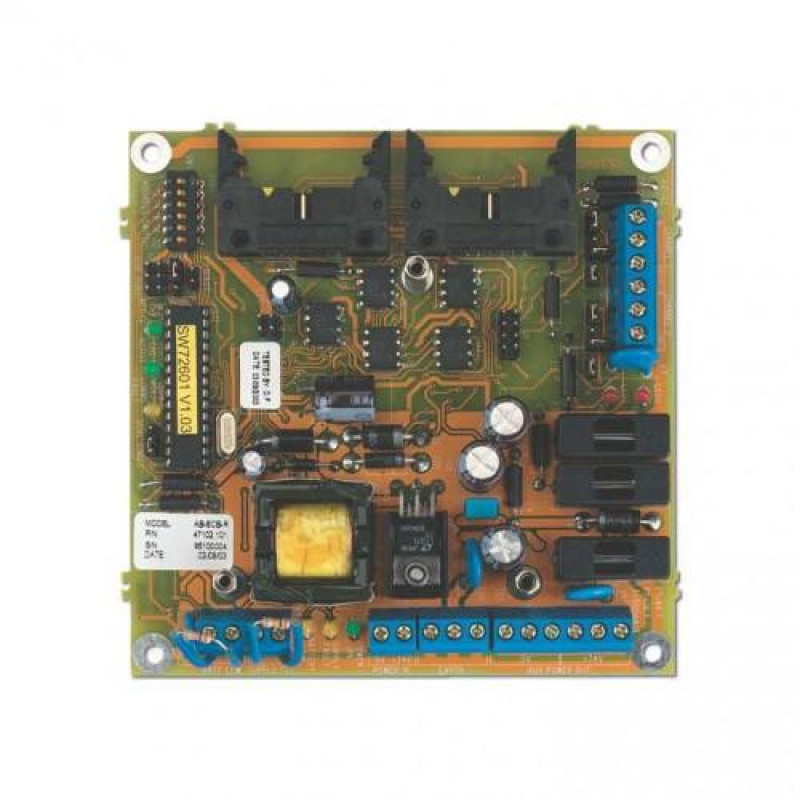

UTC, 47102, ZP3AB-SCB-R Serial Control Bus Interface Board

The ZP3AB-SCB-R provides a remote interface on the system control bus wiring enabling repeat indication and system control, at locations remote from the main panel position.

The interface can be positioned anywhere on the system bus wiring (which it shares with remote display units (RDUs). Driven from within the main control panel by an optional SCB-D driver board, a combination of up to 32 or 64 RDUs and SCB-Rs can be controlled dependant upon the ZP3 panel software.

Usually installed within auxiliary equipment cabinets, the interface is compatible with all ZP3AB optional facility boards, including the RL8 relay module, the MIP8 input card and the OP24 open collector output card.

The ZP3AB-SCB-D and SCB-R serial control bus driver and interface are part of the range of optional facility boards which can be added cost effectively to any ZP3 system, in order to provide extra facilities, which may not be a requirement of every system.

Key Features:

• Up to 32 or 64 remote serial interfaces - dependant upon control panel software
• Shares common wiring with remote display units
• RS 485 communication protocol
• Flexible wiring connection
