UTC, 48202, ZP3-AB-SCB-D Repeater Driver Board
- Brand:UTC
- Product Code:48202
- Availability:Please Call or Email Us to Check Availability

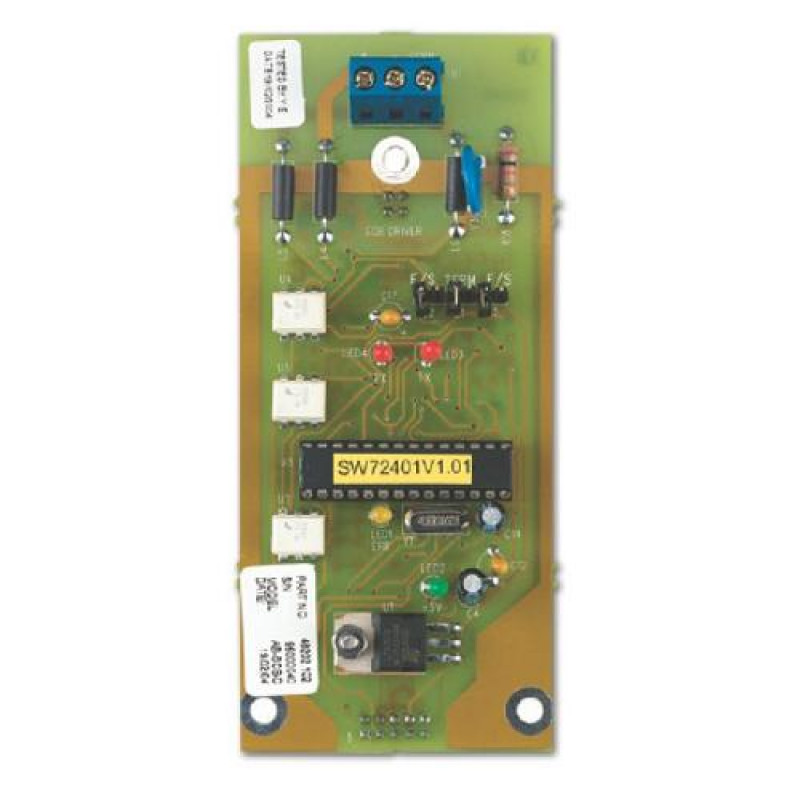

UTC, 48202, ZP3-AB-SCB-D Repeater Driver Board
ZP3AB-SCB-D - Remote display unit interface.
Connects up to 32 remote control units The Ziton ZP3AB-SCB serial control bus driver, is attached directly onto the Ziton ZP3 main control board inside the panel enclosure. It provides the means to connect and operate from 1 to 32 remote display units (ZP3-RDUB1) and or remote control units (ZP3AB-SCB-R), enabling repeat indication and system control, at locations remote from the main panel position. Serial communication between the main control panel and remote display units operates by RS 485 protocol, over twisted screened pair wiring.
RS 485 protocol Total cable length, (regardless of the number of remote units connected to a main control panel), can be up to a maximum of 2 kilometres. On larger sites, where the remote display wiring network may exceed 2 kilometres, this maximum can be extended by the addition of RS 485 booster units or optical fibre connection. Designed to provide installation flexibility, system wiring can be daisy chained or teed off with spurs. Wiring should be completed in data quality twisted screened pair cable with a minimum core diametre of 0.5 mm. Jumper terminating switches are provided on both optional board and on the PCB of each remote display unit, which are set at the system commissioning stage.
Cost effective options The Ziton ZP3AB-SCB serial control bus driver is part of the range of optional facility boards which can be added cost effectively to any ZP3 control panel, in order to provide extra facilities, which may not be a requirement of every system. Housed within the Ziton ZP3 panel, options can simply be added during panel manufacture to meet particular specifications, or subsequently fitted on site should a particular requirement become necessary during the life of the system.
Key Features:
- Optional driver for up to 32 remote display units
- Housed inside standard panel enclosure
- RS 485 communication protocol
- Flexible wiring connection
